O-Ring/Gasket

商品名稱:O-Ring/Gasket
商品編號:O-Ring/Gasket
產品說明:





Vector Telecom為全球市場提供微波波導零件和組件,同軸組件和天線。
   Vector Telecom由微波和毫米波實驗室,天線實驗室,微波和電子元件工廠組成。實驗室配備了高達110 GHz的先進微波測量設備。

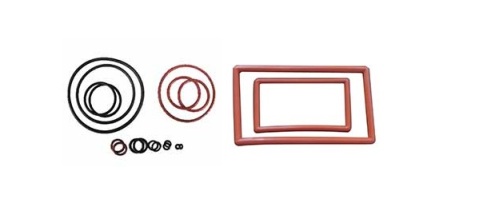

O-Ring/Gasket Product Range

 MODEL NO

 MATERIAL

 DIMENSIONS





(mm)

VT32MFOA

Silicon 70deg Shore

101X5.4

VT40MFOA

Silicon 70deg Shore

82X5.4

VT48MFOA

Silicon 70deg Shore

68.5X3.5

VT70MFOA

Silicon 70deg Shore

53X3.5

VT84MFO

Silicon 70deg Shore

40X2.6

VT100MFO

Silicon 70deg Shore

33X2.6

VT120MFO

Silicon 70deg Shore

28X2.6

VT140MFO

Silicon 70deg Shore

23.5X2.6

VT180MFO

Silicon 70deg Shore

20X2.4

VT220MFO

Silicon 70deg Shore

15.5X1.8

VT320MFO

Silicon 70deg Shore

10.5X1.8

VTMFO56.82

Silicon 70deg Shore

56.82X2.62

VTMFO78.38

Silicon 70deg Shore

78.38X2.62

VTMF101.3

Silicon 70deg Shore

101.3X3.53

VTMFO114.4

Silicon 70deg Shore

114.4X3.1

VTMFO120.94

Silicon 70deg Shore

120.94X2.62

VTMFO124.5

Silicon 70deg Shore

124.5X3

VTMFO143.8

Silicon 70deg Shore

143.8X3

VTMFO146.68

Silicon 70deg Shore

146.68X2.62

VTMFO162.7

Silicon 70deg Shore

162.7X3

VTMFO164.28

Silicon 70deg Shore

164.28X3

VTMFO194.38

Silicon 70deg Shore

194.38X3

VTMFO199.98

Silicon 70deg Shore

199.98X2.62

VTMFO284.84

Silicon 70deg Shore

284.84X3

VTMFO321.06

Silicon 70deg Shore

321.06X3

VTMFO321.4

Silicon 70deg Shore

321.4X3

VTMFO331

Silicon 70deg Shore

331X3

VTMFO422.1

Silicon 70deg Shore

422.1X3

VTMFO463.4

Silicon 70deg Shore

463.4X3

VTMFO486.2

Silicon 70deg Shore

486.2X3

VTMFO493.6

Silicon 70deg Shore

493.6X3

VTMFO499.5

Silicon 70deg Shore

499.5X3.53

VTMFO539.1

Silicon 70deg Shore

539.1X3.53

VT14MFD

Silicon 70deg Shore

174.8X92.2X8.5

VT18MFD

Silicon 70deg Shore

136X72X5

VT22MFDT

Silicon 70deg Shore

117X63X5

VT26MFDL

Silicon 70deg Shore

94X51.5X5

VT32MFDL

Silicon 70deg Shore

77X75.5X3.5

VT32MFD

Silicon 70deg Shore

79.4X41.3X3.5

VT40MFDL

Silicon 70deg Shore

63X34.5X3.5

VT48MFDL

Silicon 70deg Shore

53.9X28.5X3.5

VT58MFD

Silicon 70deg Shore

46.7X26.5X4.9

VT58MFDL

Silicon 70deg Shore

45.5X25.5X3.5

VT70MFD

Silicon 70deg Shore

41.2X22.2X4.9

VT70MFDL

Silicon 70deg Shore

39X20.5X3.5

VT84MFD

Silicon 70deg Shore

34.9X19X4.9

VT84MFDL

Silicon 70deg Shore

34.9X19X3.3

VT100MFD

Silicon 70deg Shore

28.6X15.9X4.9

VT100MFDL

Silicon 70deg Shore

28X15.5X3.5

VT140MFD

Silicon 70deg Shore

20.6X12.7X4.9
